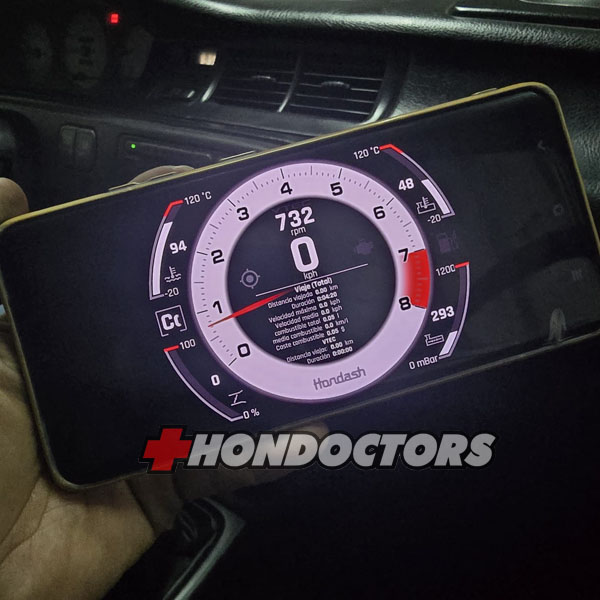

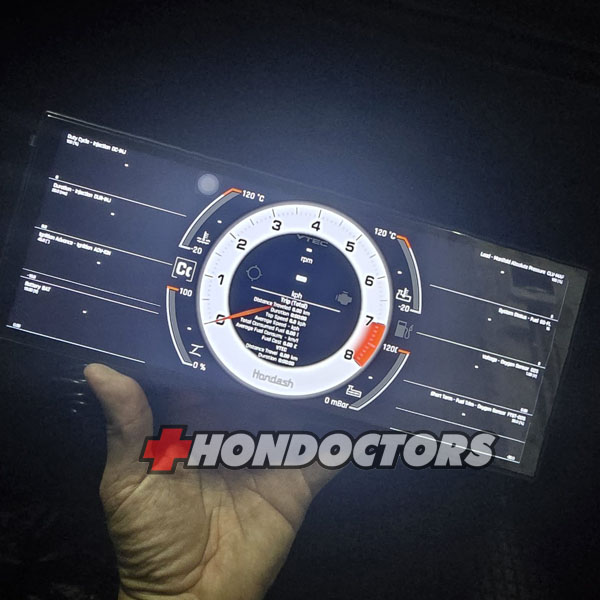

Compatible con Civic con Puerto para Scaneo. Vendemos Clusters Digitales para que veas lo que bota este dispositivo Hondash, y ver los Datos de la Ecu en tiempo real.
Description

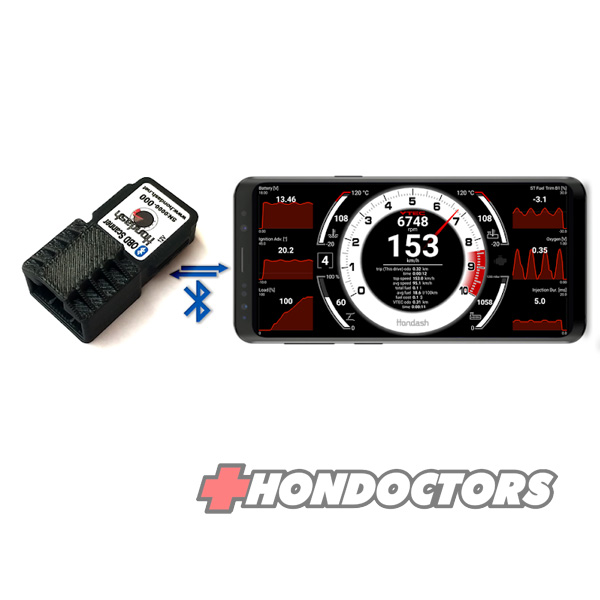

- Hondash OBD Scanner is an interface device that connects to data link connector (DLC) and establishes wireless Bluetooth communication (read only) between engine control unit (ECU) and destination device.
- The scanner is powered through the DLC connector.

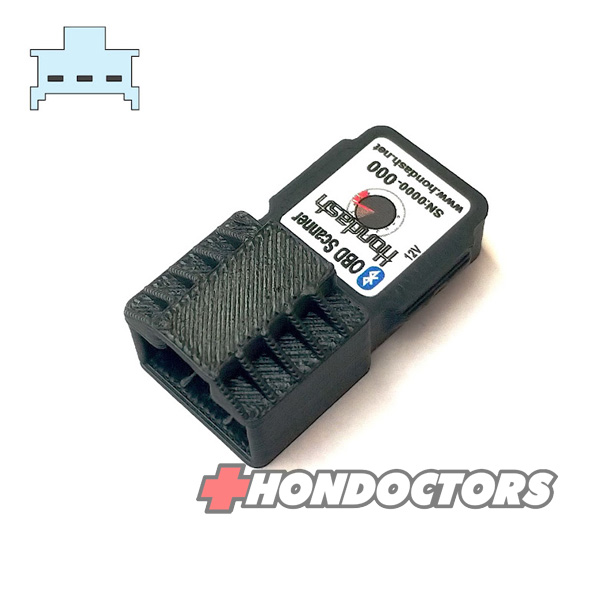

Product photos (V4)
DLC diagnostic connector locations
The 3 pin DLC diagnostics data connector (blue, older versions ’92-’95 may be grey or yellow) is usually inserted in a protective rubber (green or blue) sleeve together with a 2 pin SCS connector (3 pin + 2 pin connectors in a single protective sleeve). The 2 pin connector is a SCS service check connector for self-diagnostics purposes, it does NOT support diagnostics data transmission.
(F) behind the center
console (left)
(E) behind the center
console (right)
(B) behind the plastic cover of the ECU
(right side – Left Hand Drive,
left side – Right Hand Drive)
(A) below the glove box
(right corner – Left Hand Drive,
left corner – Right Hand Drive)
Especificaciones:
| Model version | V4 |
| Bluetooth version | 4.2 BR/EDR |
| Range | 30 m |
| Avg. communication latency | 35 ms |
| Max. sensor read frequency | 460 Hz |
| Power supply through DLC | +12 V |
| External power supply option | A pedido |
| Avg. current consumption | 4.9 mA (idle), 9 mA (connected) |
| Housing construction | 3D printed |
| Housing material | ABS |
| Dimensions | L 35 mm x W 20 mm x H 14 mm |
